Spray Dryer for Humic Acid Powder
|Terms of Trade:||FOB,CFR,CIF|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Place of Origin:||china|
|Supply Ability:||5-10 set/month|
Model No.: LPG
Spray Dryer for Humic Acid Powder
1.LPG Humic Acid Powder Spray Dryer and Drying Machine with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds.
2.This Humic Acid Powder Spray Drier and Drying Machinery has excellent uniformity, liquidity and solubility as well as high purity.
3.This Humic Acid Powder Spray dryer machine has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.

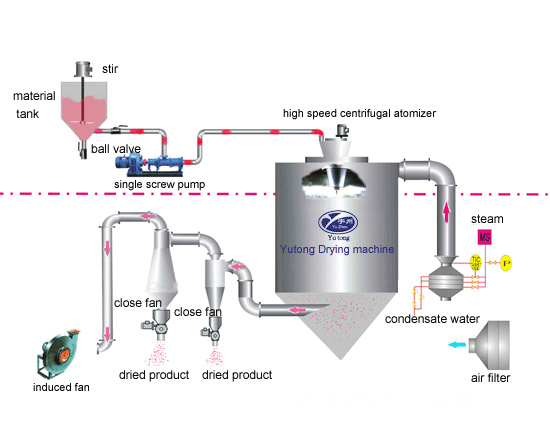

Centrifugal Spray Drier for Humic Acid Powder is a kind of dedicated equipment for drying emulsion, suspension, paste and solution. After filtering and heating, the air enters into the hot air distributor at the top of the Centrifugal Spray Drying Equipment for Humic Acid Powder, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the Humic Acid Powder drying device can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.
|Inlet Temperature (ºC)|| ||≤ 350|
|Outlet Temperature (ºC)|| ||80 to 90|
|Maximum Moisture Evaporation (kg/h)*||5||25||50||100||150||200-2000|
|Drive type of Centrifugal Spray Nozzle||Compressed air drive||Mechanical drive|
|Diameter of Spray Disk (mm)||50||102||108||108||150||180-340|
|Heat Source||Electricity||Electricity||Electricity+ steam, fuel oil, gas||Electricity+ steam||Electricity+ steam, fuel oil, gas||Depending on users|
|Maximum Power of Electric Heating (kw)||8||31.5||60||81||99|| |
|Overall Dimensions (L × W × H)||1.8 × 0.93 × 2.2||3 × 2.7 × 4.26||3.7 × 3.2 × 5.1||4.6 × 4.2 × 6||5.5 × 4.5 × 7||According to the actual situation|
|Dry Powder Recovery (%)||≥ 95||≥ 95||≥ 95||≥ 95||≥ 95||≥ 95|
Jiangsu Yutong Drying Engineering Co., Ltd factory:
Package And Shinment:
Standard Wooden Cases
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents meet customer`s requirements.
Provide considerate services to minimize clients` worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
Principle of work matters that should be known before order:
1. What is Particle liquid name and materials property, solid contents or water contents, viscosity, surface tension and PH value.
2. Powder material contents after the drying, permissible residual water contents, particle size, and permissible maxing temperature.
3. Energy that can be supplied: steam pressure supply capacity, electricity capacity, fuel coal, oil and air capacity?
4. Control requirement: how many celcius the inlet air temperature need to be controlled?
5. Powder collection requirement: whether or not the bag type collector should be mounted and what is the requirement of the environment for discharging the exhausted gas?
6. Other special requirements.
Jiangsu Yutong Drying Engineering Co.,Ltd
At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.
Since our foundation, we at Yutong have been committed to providing high quality products to our customers. In order to ensure our quality requirements are maintained, we implement the ISO9001:2008 quality management system, purchase our raw materials from reliable suppliers, continue to introduce advanced equipment, and employ highly skilled staff. The quality of our equipment is repeatedly checked during each stage of production. In addition, all machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave our factory. Due to their consistent quality, Yutong drying machines, mixing machines and grinding machines have been awarded many honors, including Recommendation for High-quality Products by IQAC and Recommended Products for International Trade by the U.S. Asia Economic Trade Cooperation Committee.
At Yutong, many cost saving measures are also implemented to reduce our production costs. For example, we have established a local information network and carried out an efficient information management system (in terms of warehousing, production planning, and order tracking), thus reducing our operating costs. Additionally, we have long-standing relationships with local raw material suppliers, so we are able to acquire our high quality raw materials at reduced cost. Furthermore, our location in Changzhou City, Jiangsu Province provides us with easy access to convenient transportation, enabling us to transport our products economically. As a result, we can provide our quality spray dryer, double cone blender and rough grinding machine at affordable prices.
In addition to high quality and reasonably priced products, we at Yutong provide customers with considerate service. Our products come with a one-year warranty, during which we can provide staff training, on-site installation, and debugging services upon request. We also provide wearing parts at our cost prices. Hence, our drying machine, mixing machine, and sifting machine are very popular in USA, Canada, Italy,United Kingdom, German, Cyprus, Turkey, Korea, Japan, Vietnam, Thailand, Argentina, Chile, Brazil and so on.
We look forward to cooperating with partners from all the world to build win-win cooperation relationship in long term. Welcome for your visit and instigation!
- Company Name: Jiangsu Yutong Drying Engineering Co.,Ltd
- Representative: lu wenguang
- Product/Service: Spray Dryers , Flash Dryers , Mixing Machines , Granulating Machines , Grinding Machines , Vacuum Dryers
- Capital (Million US $): 108,0000RMB
- Year Established: 2000
- Total Annual Sales Volume (Million US $): US$10 Million - US$50 Million
- Export Percentage: 11% - 20%
- Total Annual Purchase Volume (Million US $): US$10 Million - US$50 Million
- No. of Production Lines: 12
- No. of R&D Staff: 11 -20 People
- No. of QC Staff: 5 -10 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): Above 100,000 square meters
- Factory Location: Shunehe Road68 ,Jiaoxi, Zhenlu Town, Wujin District, Changzhou City, Jiangsu Province, China
- Contact Person: Mr. Andrew
- Tel: 86-138-61087188
