Open mouth fertilizer auto bagging machine for 10~50kg granule
25kg automatic fertilizer bagging machine line working processing from 10-50kg raw material supplying, auto weighing filling, auto bag feeding, auto open mouth bagging, auto bag moving, auto bag sealing, finsihed products output. For heavy bag packaging, in order to facilitate the transportation of finished products, it is usually equipped with auto Robot Palletizing System or high level palletizer.
The automatic 25 kg fertilizer bagging machine is widely applied in food industry(rice, beans, sugar, corns ), chemical industry, feed, grain, seed, salt, sugar, pet foods and other Industries with paper bag, palstic bag, etc. Automatic supplying bags can be high-speed and continuous.

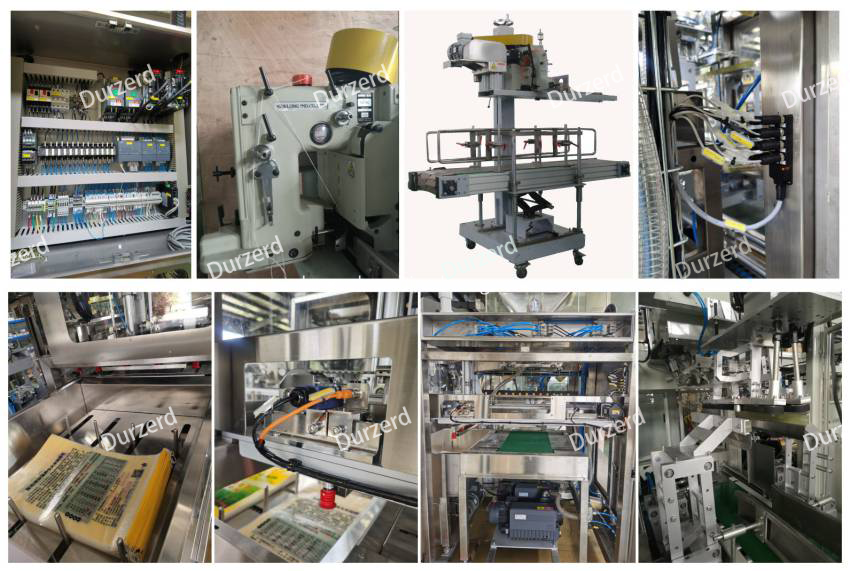

The whole system consists of the following parts:
1.High speed servo control weighing machine
2.Auto bag feeding and packing machine with electric control box
3.Automatic Stitching /sewing/heating/paper taping sealing machine(Stitching Machine with NEWLONG stitching head)
4.Plat form(painted steel or stainless steel 304)
1. The open mouth bagging machine filling weight range from 10-25kg or 25-50kg for each bag, and can supply about 550-650 bags/h or high speed model 800-1000bags/h.
2. Automatic supplying bags can be high-speed and continuous.
3. Every execution unit includes control & safety device to make the equipment run automatically and continuously.
4. The motor manufactured by SEW make the equipment more efficient.
The fertilizer bagging machine is widely applied in chemical industry, feed, grain, seed ,salt, sugar, pet foods and other Industries with paper bag, plastic bag, etc.
Work Flow Chart:
Bag Supplying Machine→Take Empty Bag→Open Empty Bag→Bag Clamping and Feeding Mechanism→Bag Bottom Flapping Mechanism→Bag Horizontal Moving & Pocket Mouth Clamping Mechanism→Standing Bag Conveyor→Auto bag folding and sewing→Finished bag
Fertilizer bagging machine Detailed description
Fertilizer Bag Packing Machine Technical Parameters
550-650 bags/h or high speed model 800-1000bags/h
Bag storage capacity
three-phase four (five) wire system, 380V, 50HZ, 7KW
Air source used
clean, dry, oil-free and dust-free, 0.5-0.7MPa, 8000NL/Min
heat sealing inner bag + seam outer bag
Packing bag type
Premade open-mouth bag
Packing bag material
paper bag, polyethylene coated paper bag, PE inner film paper bag, aluminum foil paper bag, PE bag, polypropylene fiber bag,Coated fiber bag, PE inner film fiber bag
Packing bag shape
flat bag, flat bottom bag
1. Equipment model selection;
2. According to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
5. Acceptance of the product;
6. Assist the client in drafting the construction plan;
Durzerd have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
DURZERD PACKAGING MACHINERY CO., LTD.
Durzerd machinery is a company with manufacturing and self-supporting import and export rights for more than 25 years, our company has experience in exporting all machine items to all over the worlds ,We provide worldwide customers with a full line of reliable products. we are a company devotes to bag making machines,automatic packaging machines, secondary packing machine ,heavy packaging robot palletizer line and technology development in one of the high-tech enterprise. The company has a perennial engaged in the field of industrial high-tech product development of high-quality professional and technical R&D team, strong technical force, has a number of experienced software and hardware engineers, professional product development designer.
Automatic packing machine: sachets packing machine, stick packing machine, vertical packing machine, high speed vertical packing machine, weighing machine; rotary premade bag packing machine, mini doypack machine, vacuum packing machine, autimatic 25kg ~ 50kg kraft paper bag packing machine wovenn bag packing machine, etc.
Robot palletizer line: such as woven bag palletizer line, carton box palletizer line, etc.
Secondary packing line: bag in bag secondary packing machine, bag in carton line, box in carton line, etc.
Backed by modern manufacturing facilities, state-of-the-art technology, independent intellectual property, CE certificate, ISO 9001 certification, we offer you world-class products with advanced features, competitive price, reliable quality and on time delivery.We provide various services of quotation, quality inspection, insurance, customs declaration, shipping, handling / processing of export documentation and other services according to your needs. We have engineer teams for after sale service in 24 hours.
